Hanxingcn XINGXI-H Series 15 kWh High Voltage LFP Battery

High voltage battery storage
High voltage battery storage

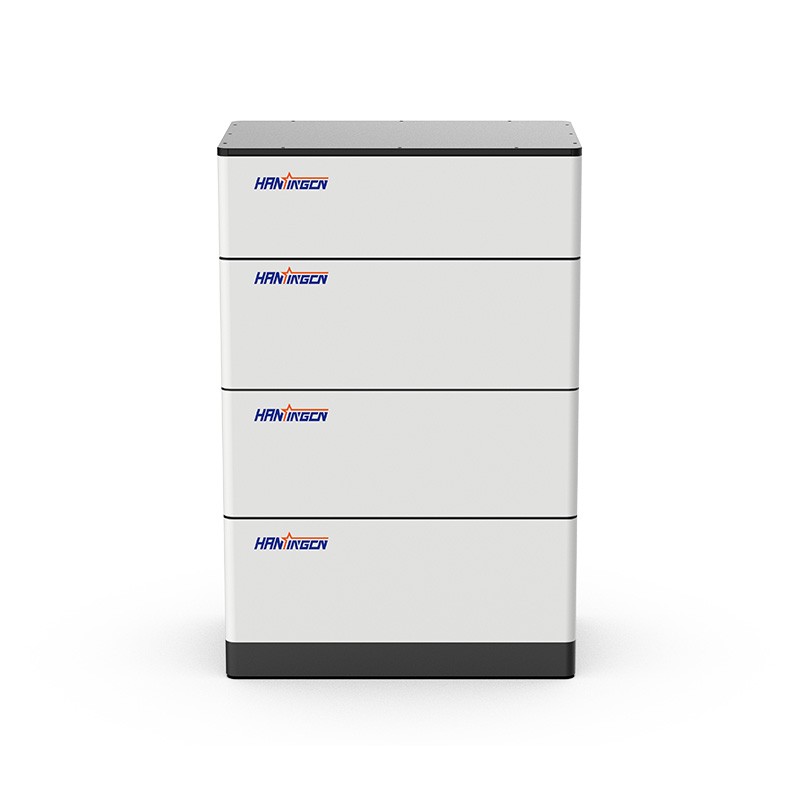

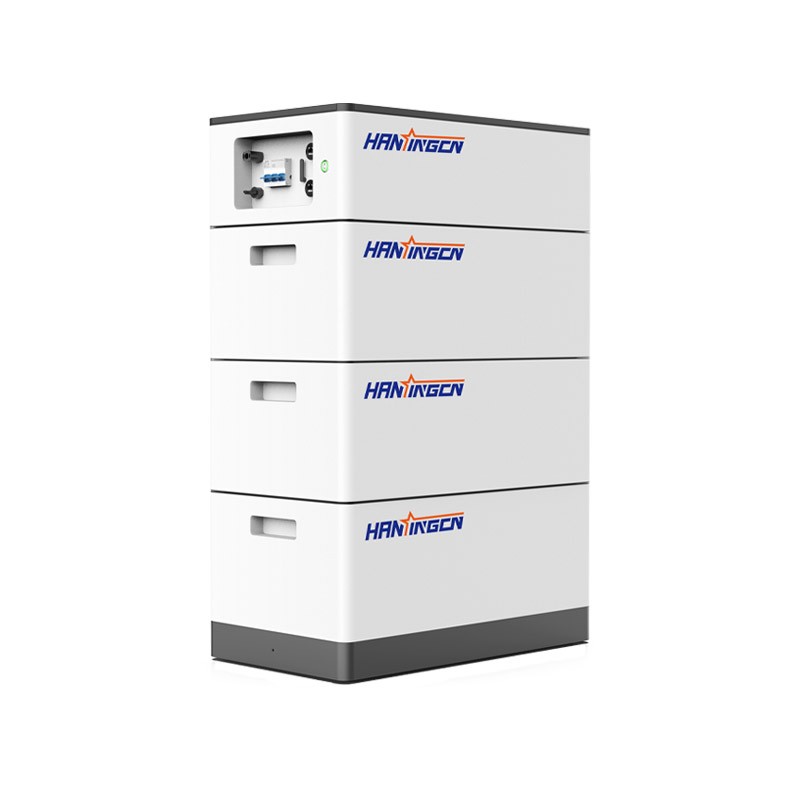

Hanxingcn XINGXI-H Series 15 kWh High Voltage LFP Battery

Hanxingcn XINGXI-H Series 15 kWh High Voltage LFP Battery is composed of 1 high voltage box and 3 battery modules that are connected in series.
  • Brand:

    HANXINGCN
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Western Union
  • LeadTime:

    30 days
  • Battery Type:

    LiFePO4
  • Nominal Capacity:

    15.9 kWh
  • Nominal Voltage:

    307.2 V

XINGXI-H Series 15 kWh High Voltage LFP Battery



Product Description



Hanxingcn XINGXI-H series 15 kWh high-voltage LFP battery is a floor-standing lithium battery pack consisting of long-life LiFePO4 batteries and functional BMS. It can store and release electrical energy according to the requirements of the inverter controller. Mainly used in residential energy storage solutions, but also in small commercial places.





Features



  •   Modular design: supports expansion
  •   Built-in BMS: intelligent management and maintenance of each battery unit
  •   Safe: multi-stages protection design
  •   Long life span: 15 years life design, up to 6000 cycles
  •   Easy installation: compact and light, plug and play
  •   OEM supported: support customized logo





High voltage battery storage system





Technical Parameter



  XINGXI-10-H XINGXI-15-H XINGXI-21-H XINGXI-26-H
System Data
Battery Type LFP
Battery Module XINGXI-5000H: 102.4V 5.3 kWh
Number of Modules 2 3 4 5
Nominal Capacity 10.6 kWh 15.9 kWh 21.2 kWh 26.5 kWh
Usable Capacity 9.54 kWh 14.31 kWh 19.08 kWh 23.85 kWh
Nominal Voltage 204.8 V 307.2 V 409.6 V 512 V
Operating Voltage 182.4~230.4 V 273.6~345.6 V 364.8~460.8 V 456~576 V
Continuous Discharge Current 26 A
Communication CAN
General Data
Weight 120 kg 172 kg 224 kg 276 kg
Dimensions (W×D×H) 666×354×796 mm 666×354×1078 mm 666×354×1360 mm 666×354×1641 mm
Operating Temperature Charge: 0℃ to 50℃ / Discharge: -20℃ to 50℃
Humidity ≦  95%
Altitude ≦  2000 m
Degree of Protection IP54 (outdoor / indoor)
Mounting Method Floor stand
Certificates TÜV SÜD / CE / UN38.3 / MSDS
