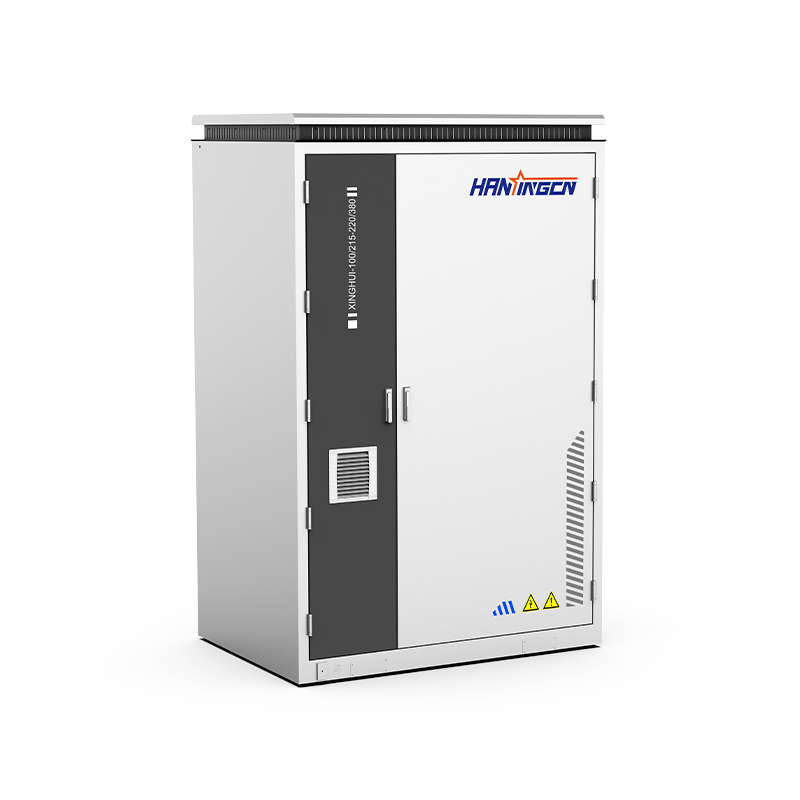

Hanxingcn XINGHUI Liquid Cooling C&l Energy Storage System

liquid cooling C&I ESS

Hanxingcn XINGHUI Liquid Cooling C&l Energy Storage System

XINGHUI Liquid Cooling Commercial & Industrial Energy Storage System aims to provide solutions for industrial and commercial application scenarios to ensure grid security, enhance renewable energy generation, and provide UPS backup to maintain normal power supply.

  • Brand:

    HANXINGCN
  • Model:

    XINGHUI-100/215-220/380
  • Battery Type:

    Lithium Iron Phosphate (LiFePO4)
  • Power:

    100 kW
  • Energy:

    215 kWh
  • Phase:

    3P+N+PE
  • Cooling Method:

    Liquid cooling
  • Enclosure Protection:

    IP55
  • Dimensions:

    1704×1204×2632 mm

XINGHUI Series Liquid Cooling C&I Energy Storage System



XINGHUI series liquid cooling commercial & industrial energy storage system (ESS) is a scalable, intelligent range developed by anlanbel R&D team. Allows you to store renewable energy from different sources and use it when needed. Widely serve industrial and commercial grid-level users.







Features



* Liquid cooling C&I ESS design complete with battery, PCS, BMS, fire suppression, thermal management and so on

* Maximum safety utilizing the safest type of lithium ion battery chemistry combined with an intelligent 3-level battery management system
* Outstanding performance and long lifespan

* Optimized for both on-grid and off-grid (island mode) applications

* Adopt single string design, realize parallel zero capacitance loss, integrated harmonic control, reactive power compensation, and 3P unbalance control

* Supports multiple cabinets that can be directly connected in parallel, achieving energy storage system expansion, plug and play

Adopting high reliability liquid cooling for heat dissipation, improving the protection level in a closed operating environment





Technical Parameter



GENERAL DATA of LIQUID COOLING COMMERCIAL & INDUSTRIAL ESS
Model XINGHUI-100/215-220/380
Charge and Discharge Efficiency >88%
Communication LAN/CAN/RS485/4G
Operating Temperature Range -10℃ - 60℃
Cell Chemistry Lithium Iron Phosphate (LiFePO4)
Cooling Concept of Battery Chamber
Liquid cooling
Fire Suppression System of Battery Unit PACK level fire protection
Enclosure Protection IP55
Dimensions (W x D x H) 1704×1204×2632 mm
Weight 2800 kgs







Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
You may be interested in the following products...

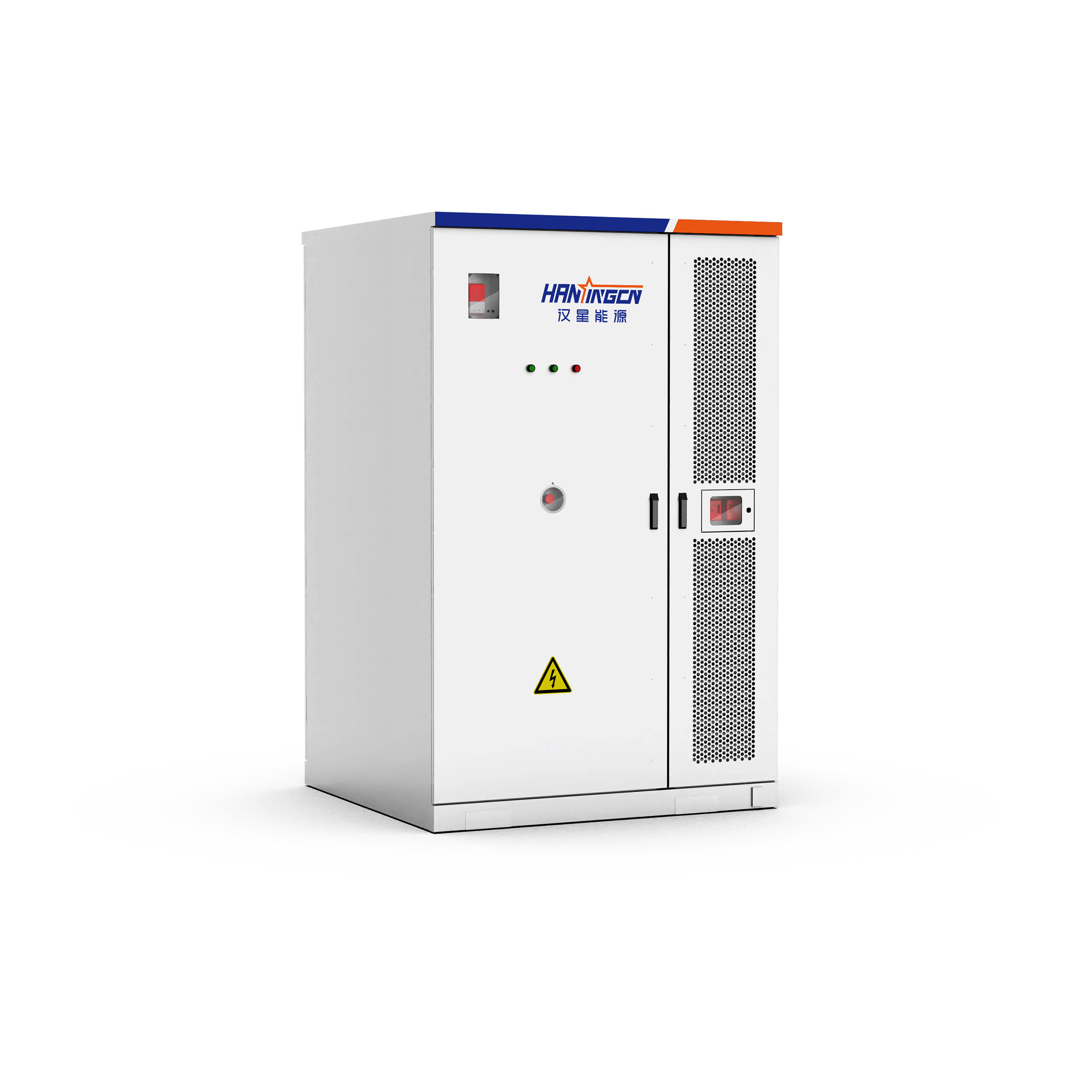

Outdoor ESS
