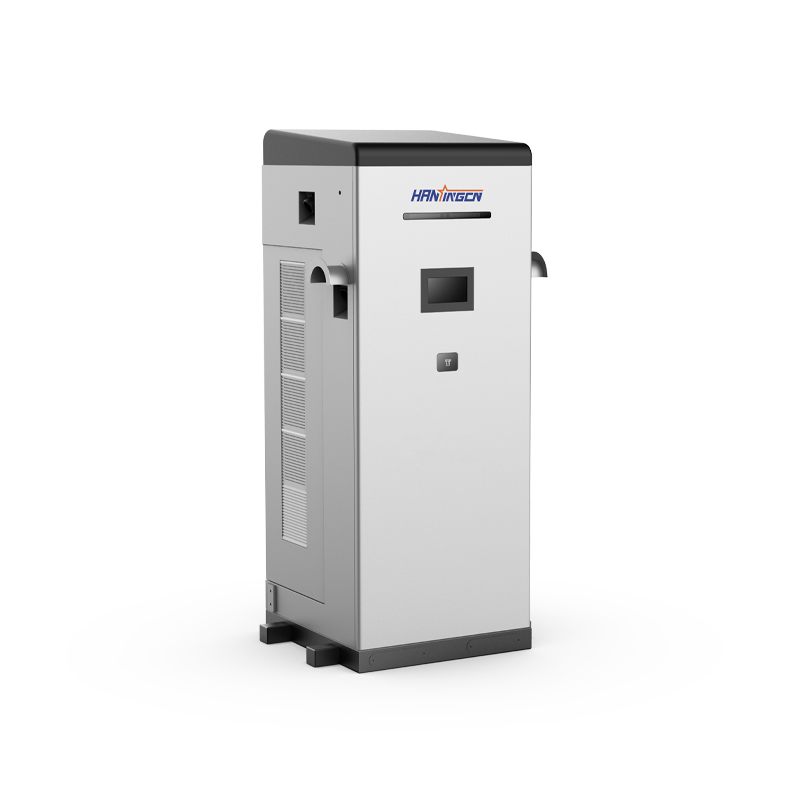

Hanxingcn 60kW Rapid Three-Phase DC Charger

Charging point

Hanxingcn 60kW Rapid Three-Phase DC Charger

The 60kW is the integration of a fast three-phase DC EV charger, ideal for commercial charging and multiple vehicle charging.

  • Brand:

    HANXINGCN

  • Max. Output Power:

    60kW

  • Connector:

    GB/T

  • Cable Length:

    8 m

  • Enclosure Ratings:

    IP54

  • Mounting:

    Floor mounted
Inquiry now

60kW Rapid Three-Phase DC Charger



As electric vehicle (EV) adoption accelerates, the need for DC fast charging is increasing. DC fast charging is essential for public EV charging infrastructure and will help enable long-distance traveling and give households with no home EV charging somewhere to charge their cars quickly. DCFC (Direct Current Fast Charging) will also be critical as we transition larger vehicles to electric, requiring larger batteries and higher charging rates to make them usable in real-world environments.


DC fast charging is known as DCFC, and is often referred to as rapid or ultra-fast charging. Fast chargers typically charge below 100kW, while ultra-fast chargers operate above 100kW, 160kW and 320kW chargers are widely available, and some fast chargers can scale up to higher levels. Typically, a 60kW fast charger can charge an EV from 20%-80% in half an hour. An ultra-fast electric vehicle charging station will further reduce this time.





Technical Parameters




60kW Rapid Three-Phase DC Charger
Dimension 870 × 670 × 1580 mm
Maximum charging power 60kW
Output DC voltage range DC 0V~1000V
Output DC current range DC 0A~200A
AC input voltage range 380VAC ±15%
AC input frequency range 47~63Hz
Power factor >0.99
Total harmonic distortion rate <5%
Efficiency >95%
Ambient temperature -20~50℃
Ambient humidity 5% ~95%
Connector standard GB/T20234.3-2015 electric vehicle conduction charging connection device




Product Features

1. Plug & charge, app, RFID or contactless payment controlled charging
2. Offer up to 2x DC charging outputs
3. Touch screen constitutes a convenient and friendly man-machine operation interface.
4. Support intelligent power allocation to improve charging efficiency and utilization.
5. Support uniform charging, alternate charging and dual gun charging simultaneously.
6. The pile covers a small area and has low comprehensive cost.
7. High efficiency, low standby power consumption.
8. Variety of charging methods. It can be automatically charged, charged by power, charged by amount and charged by time.
9. Charging time or end time can be booked.
10. Support pre-payment, IC card payment, mobile phone payment and other payment methods.
11. With running status indicator.
12. It can communicate with background monitoring, and the standard configuration is to upload user information and device status information to the background monitoring system through the CAN interface, and obtain and execute the control commands of the background monitoring system. Communication mode can also be optional GPRS wireless network or Ethernet.
13. The output is configured with high-precision DC smart energy meter, which can measure DC charging power. (optional)
14. The electrical interface connector has a mechanical locking device to prevent accidental disconnection during connection, and has the function of preventing misoperation.
15. The charger has the function of power failure recording field data, which can prevent the phenomenon of loss of charging data due to accidental power failure.
16. The charging pile has the function of event information data recording, the storage number of records is 100, and the previous records are automatically overwritten after more than 100.
17. Advanced, intelligent, safe and reliable electric vehicle charging strategy
① Advanced and intelligent: automatic configuration of charging voltage and current
The charging voltage and current are automatically configured based on vehicle requirements. The on-board BMS sends the required voltage and current information to the charger. The charger outputs power according to the command sent by the on-board BMU.
② Safe and reliable: a variety of charging end conditions
When the vehicle is charged, the BMS sends a stop charging command to inform the charger to stop power output; Or when the set conditions of the charger are reached, the charger automatically closes the power output module and sends the stop charging command to the BMS.






Applications




  • Residential sites such as homes, apartments, and condos
  • Commercial sites such as convenience stores, supermarkets, department stores, malls, coffee shops, restaurants, banks, and commercial complexes
  • Workplaces
  • Public sites such as government buildings and schools
  • Parking lots and roadside parking spaces
  • Logistics fleets
