Hanxingcn 20ft Liquid Cooling Battery Energy Storage System Container

Liquid cooling battery container

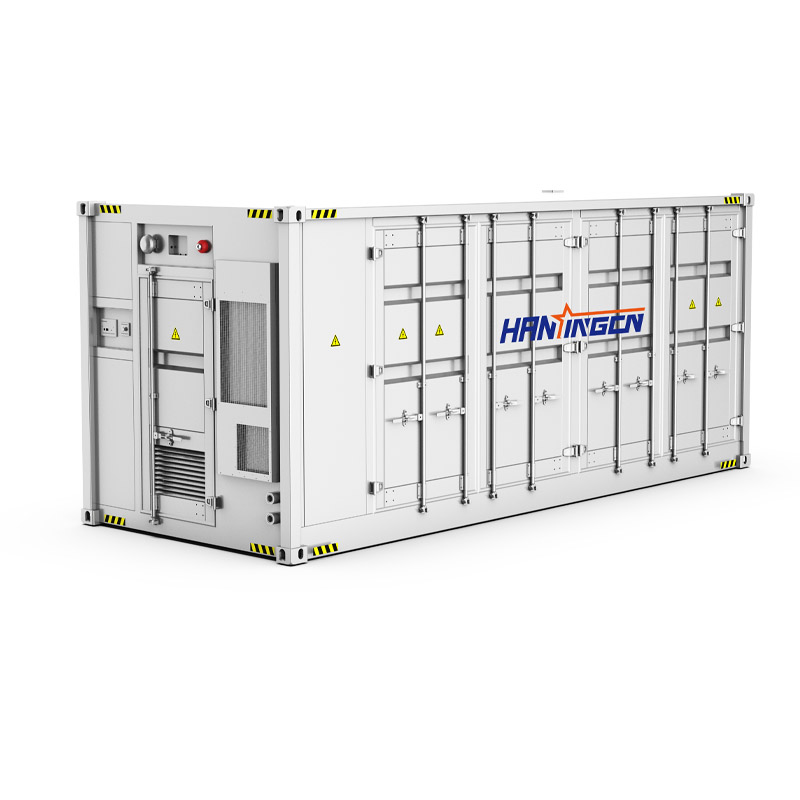

Hanxingcn 20ft Liquid Cooling Battery Energy Storage System Container

Hanxingcn 20ft battery container is a battery energy storage system (BESS) solution integrated with liquid cooling system technology.

  • Brand:

    HANXINGCN
  • Model:

    XINGHUI-3350-(1040-1497.6)
  • Nominal Energy:

    3.35 MWh
  • Rated AC Power (via PCS):

    1.72 MW
  • Nominal Capacity:

    2520 Ah
  • Nominal Voltage:

    1331.2 V
  • Cooling Method:

    Liquid cooling
  • System Charge/Discharge Rate:

    0.5P

20ft Liquid Cooling Battery Energy Storage System Container



At Aulanbel, we can customize battery energy storage system solutions for you. The 20ft battery energy storage container we designed and manufactured uses liquid cooling technology. Compared to traditional air-cooled HVAC systems, liquid cooling allows the battery to have a more uniform temperature throughout the system while using less input energy, preventing overheating, keeping it safe, minimizing degradation and delivering higher performance.



Hanxingcn 20ft liquid cooling BESS container has about 3.35MWh of usable energy. Here are some ways that liquid-cooled technology can unlock the potential of 3.35MWh BESS containers:



  • High safety LFP energy storage cell with up to 6000 cycles and a lifespan of over 15 years
  • Reliable battery management system (BMS), patented software algorithm to ensure reliable operation of equipment
  • Equipped with multiple fire safety protection systems, it realizes the functions of cell-level temperature monitoring to PACK-level automatic fire extinguishing
  • The entire cabin is equipped with a triple protection system consisting of PACK level immersion fire extinguishing system, fully submerged heptafluoropropane fire extinguishing system, and fire water sprinkler system





Technical Parameter



Model XINGHUI-3350-(1040-1497.6)
Nominal Energy 3.35 MWh
Rated AC Power (Via PCS) 1.72 MW
Nominal Capacity 2520 Ah
Nominal DC Voltage 1331.2 V
DC Voltage Range 1040 V ~ 1497.6 V
System Charge/Discharge Rate
0.5C
Operating Temperature Range -30℃ ~ 50℃
Storage Temperature Range -30℃ ~ 55℃
Relative Humidity 0 ~ 95% (non-condensing)
Max. Working Altitude ≤ 4000 m
Cell Chemistry Lithium Iron Phosphate (LiFePO4)
Number of Racks
9
Dimensions (W × D × H)
6058×2438×2896 mm
Weight
≈32 T
Enclosure 20' GP container IP54
Integration Requirements Directly install the battery module to meet overall transportation needs
Fire Suppression System Module level gas/water fire protection
Thermal Management System Environmental temperature control 25±5℃, maximum battery operating temperature ≤3℃, temperature difference ≤5℃
Battery Temperature Control Method Forced liquid cooling
BMS 3-level framework for system control and passive balancing
Power consumption requirements Standby loss requirement ≤300W, working energy consumption ≤80kWh/day 1 cycle
Compliance UN38.3, GB/T36276, GB/T34131
