Utilizing a modular stacking battery system can help reduce your power bills and protect your household from power outages by providing a continuous and reliable power supply.
Brand:
HANXINGCNOrder(MOQ):
1Payment:
T/T, L/C, Western UnionLeadTime：
30 daysBattery Type:
LFPNominal Capacity:
15.36 kWhNominal Voltage:

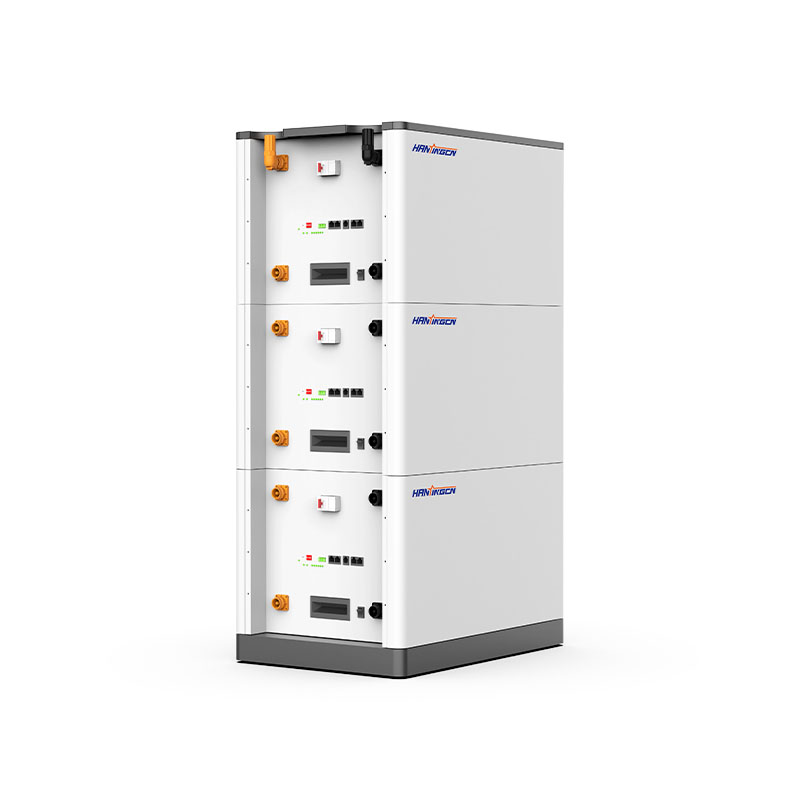

51.2VXINGXI-L Series 15 kWh Low Voltage LFP Battery
Product Description
Hanxingcn XINGXI-L series is a lithium-ion battery specifically designed for residential use in low-voltage battery systems. Its purpose is to assist homeowners in maximizing the utilization of solar energy and minimizing energy expenses. The XINGXI-L series offers effortless installation with its plug-and-play feature, facilitated by pre-wired communication cables. Notably, it allows for flexible scaling from 5.12 to 92.16 kWh, and its self-detecting modules and stackable design simplify the commissioning process for installers.
Technical Parameter
| XINGXI-5-L | XINGXI-10-L | XINGXI-15-L | XINGXI-20-L | XINGXI-25-L | XINGXI-30-L | |
| Nominal Capacity | 5.12 kWh | 10.24 kWh | 15.36 kWh | 20.48 kWh | 25.6 kWh | 30.72 kWh |
| Usable Capacity | 4.608 kWh | 9.216 kWh | 13.824 kWh | 18.432 kWh | 23.04 kWh | 27.648 kWh |
| Battery Type | LFP 100Ah | |||||
| Rated Charging / Discharging Current | 66 A | 97 A | 97 A | 97 A | 97 A | 97 A |
| Weight | 44 kg | 82 kg | 120 kg | 152 kg | 190 kg | 222 kg |
| Dimensions (W*D*H) | 700*460*381 mm |
700*460*698 mm
|
700*460*1015 mm
|
700*460*1332 mm | 700*460*1649 mm | 700*460*1996 mm |
| Nominal Voltage | 51.2 V | |||||
| Operating Voltage | 48 V ~ 57.6 V | |||||
| Operating Temperature |
Charge: 0℃ to 50℃ / Discharge: -10℃ to 50℃
|
|||||
| Short-circuit Current | 2.323kA @ 1.0ms | |||||
| Communication | CAN/RS485 | |||||
| Relative Humidity | 0~95% | |||||
| Max. Operating Altitude | 2000 m | |||||
| Enclosure Protection Rating | IP54 | |||||
| Mounting Method | Floor stand | |||||
| Certification | TÜV SÜD / CE / UN38.3 / MSDS | |||||
