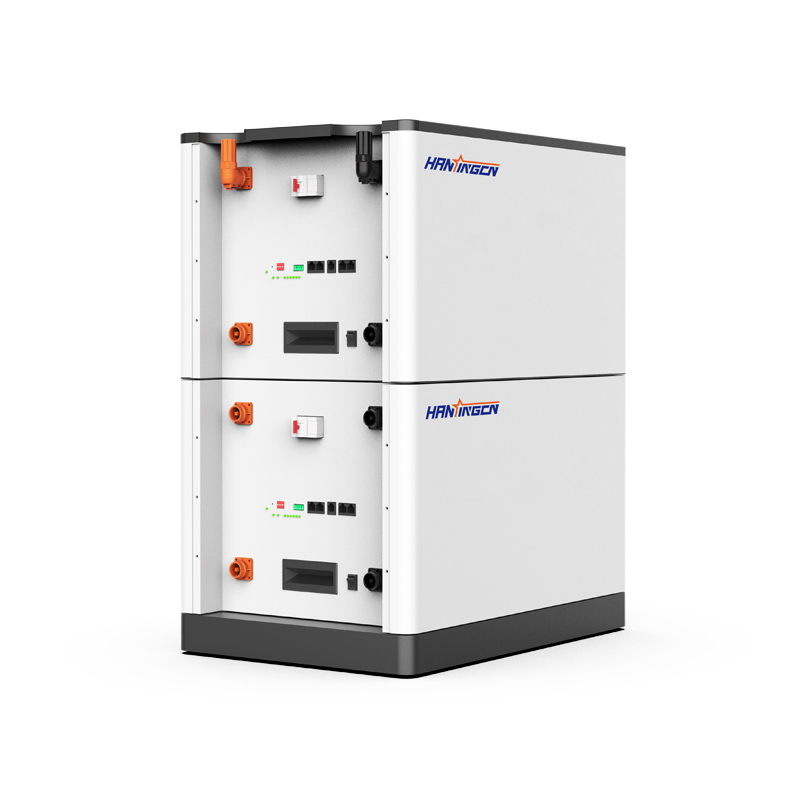

Hanxingcn XINGXI-L Series 10 kWh Low Voltage LFP Battery

Hanxingcn XINGXI-L Series 10 kWh Low Voltage LFP Battery

Hanxingcn XINGXI-L Series 10 kWh Low Voltage LFP Battery

Hanxingcn XINGXI-L Series Low Voltage Battery Systems are great for off-grid systems, and users looking for large capacity potential with a medium to low energy demand.
  • Brand:

    HANXINGCN
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Western Union
  • LeadTime:

    30 days
  • Battery Type:

    LFP
  • Nominal Capacity:

    10.24 kWh
  • Nominal Voltage:

    51.2V

XINGXI-L Series 10 kWh Low Voltage LFP Battery



Product Description



Hanxingcn XINGXI-L series low-voltage LFP batteries are mainly for home energy storage systems. It is based on lithium iron phosphate batteries and equipped with customised BMS. 6000 cycle times, long service life, and suitable for daily charging and discharging application scenarios.




Features



  •   Plug-in terminals, easy to operate
  •   Natural cooling system
  •   Smart BMS system to optimize the performance
  •   Compatible with inverters such as GROWATT, Solid, invt, etc
  •   Floor Mounted
  •   5kWh 10kWh 15kWh 20kWh 25kWh 30kWh optional



low voltage BESS





Technical Parameter



  XINGXI-5-L XINGXI-10-L XINGXI-15-L XINGXI-20-L XINGXI-25-L XINGXI-30-L
Nominal Capacity 5.12 kWh 10.24 kWh 15.36 kWh 20.48 kWh 25.6 kWh 30.72 kWh
Usable Capacity 4.608 kWh  9.216 kWh 13.824 kWh 18.432 kWh 23.04 kWh 27.648 kWh
Battery Type LFP 100Ah
Rated Charging / Discharging Current 66 A 97 A 97 A 97 A 97 A 97 A
Weight 44 kg 82 kg 120 kg 152 kg 190 kg 222 kg
Dimensions (W*D*H) 700*460*381 mm
700*460*698 mm
700*460*1015 mm
700*460*1332 mm 700*460*1649 mm 700*460*1996 mm
Nominal Voltage 51.2 V
Operating Voltage 48 V ~ 57.6 V
Operating Temperature
Charge: 0℃ to 50℃ / Discharge: -10℃ to 50℃
Short-circuit Current 2.323kA @ 1.0ms
Communication CAN/RS485
Relative Humidity 0~95%
Max. Operating Altitude 2000 m
Enclosure Protection Rating IP54
Mounting Method Floor stand
Certification TÜV SÜD / CE / UN38.3 / MSDS







Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
You may be interested in the following products...

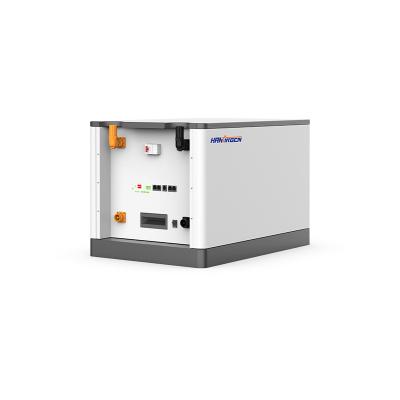

10 kWh high voltage LFP battery

Hanxingcn XINGXI-H Series High Voltage Stacked LFP Battery starts at 10.6kWh, with additional 5.3kWh modules for expansion.

Learn More

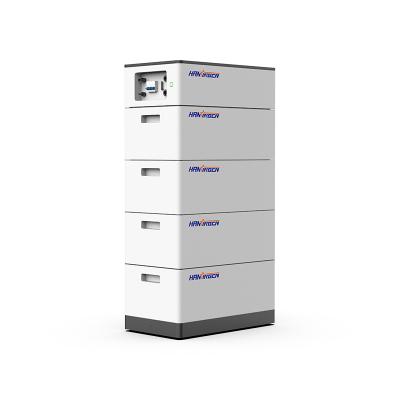

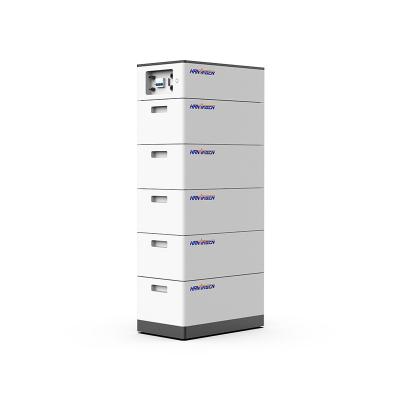

low voltage battery system

Hanxingcn XINGXI-L Series Low Voltage LiFePO4 Battery starts at 5.12 kWh with each additional module offering an extra 5.12kWh. Each single tower can be stacked up to 6 layers.

Learn More

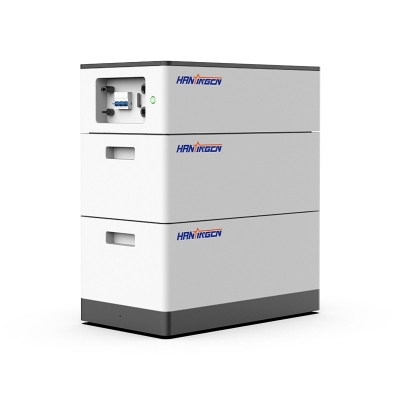

High voltage battery storage

Hanxingcn XINGXI-H Series 15 kWh High Voltage LFP Battery is composed of 1 high voltage box and 3 battery modules that are connected in series.

Learn More
High voltage battery system

Hanxingcn XINGXI-H Series 21 kWh High Voltage LFP Battery are connected in series between modules without any cable connection.

Learn More
high voltage home energy storage system

Hanxingcn XINGXI-H Series 26 kWh High Voltage LFP Battery in home PV storage systems mainly store the excess solar energy from PV system for use at night, protecting your home from power outages and helping to reduce dependence on the grid.

Learn More

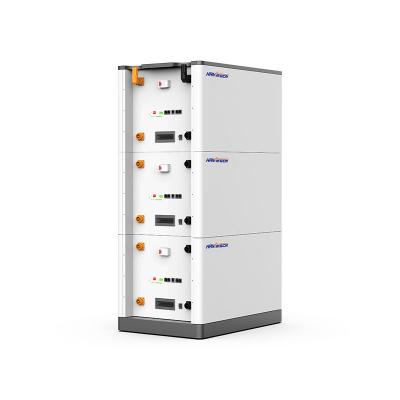

Hanxingcn XINGXI-L Series 15 kWh Low Voltage LFP Battery
