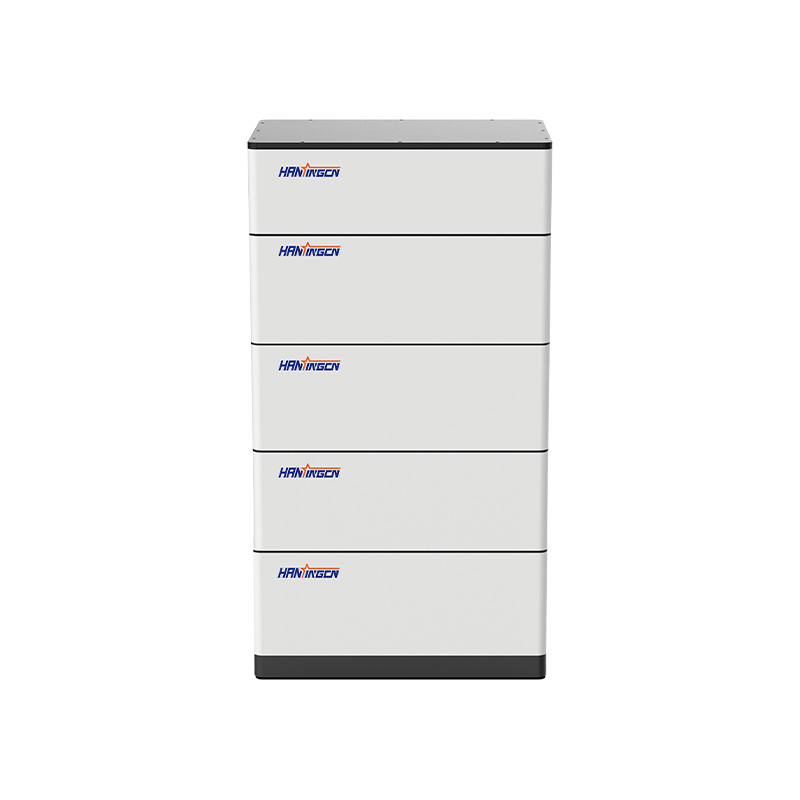

Hanxingcn XINGXI-H Series 21 kWh High Voltage LFP Battery

High voltage battery system
High voltage battery system

Hanxingcn XINGXI-H Series 21 kWh High Voltage LFP Battery

Hanxingcn XINGXI-H Series 21 kWh High Voltage LFP Battery are connected in series between modules without any cable connection.
  • Brand:

    HANXINGCN
  • Order(MOQ):

    1
  • Payment:

    T/T, L/C, Western Union
  • LeadTime:

    30 days
  • Battery Type:

    LiFePO4
  • Nominal Capacity:

    21.2 kWh
  • Nominal Voltage:

    409.6 V

XINGXI-H Series 21 kWh High Voltage LFP Battery



Product Description



Hanxingcn XINGXI-H series 21kWh high-voltage LFP battery is a stacked lithium-ion battery module with built-in high energy density LiFePO4 batteries and intelligent BMS. It can store and release electrical energy according to the requirements of the inverter controller. Mainly used in residential energy storage systems, but also in small commercial places.





Features



  •   BMS intelligent protection, safe and reliable
  •   6000 cycles, over 15 years of design life
  •   Plug and play, reducing manual installation costs
  •   Tower design, supporting parallel expansion to multiple towers
  •   Compatible with inverters such as GROWATT, MEGAREVO, Solid, invt, etc
  •   Low MOQ for brand OEM order





High voltage battery systems





Technical Parameter



  XINGXI-10-H XINGXI-15-H XINGXI-21-H XINGXI-26-H
System Data
Battery Type LFP
Battery Module XINGXI-5000H: 102.4V 5.3 kWh
Number of Modules 2 3 4 5
Nominal Capacity 10.6 kWh 15.9 kWh 21.2 kWh 26.5 kWh
Usable Capacity 9.54 kWh 14.31 kWh 19.08 kWh 23.85 kWh
Nominal Voltage 204.8 V 307.2 V 409.6 V 512 V
Operating Voltage 182.4~230.4 V 273.6~345.6 V 364.8~460.8 V 456~576 V
Continuous Discharge Current 26 A
Communication CAN
General Data
Weight 120 kg 172 kg 224 kg 276 kg
Dimensions (W×D×H) 666×354×796 mm 666×354×1078 mm 666×354×1360 mm 666×354×1641 mm
Operating Temperature Charge: 0℃ to 50℃ / Discharge: -20℃ to 50℃
Humidity ≦  95%
Altitude ≦  2000 m
Degree of Protection IP54 (outdoor / indoor)
Mounting Method Floor stand
Certificates TÜV SÜD / CE / UN38.3 / MSDS
