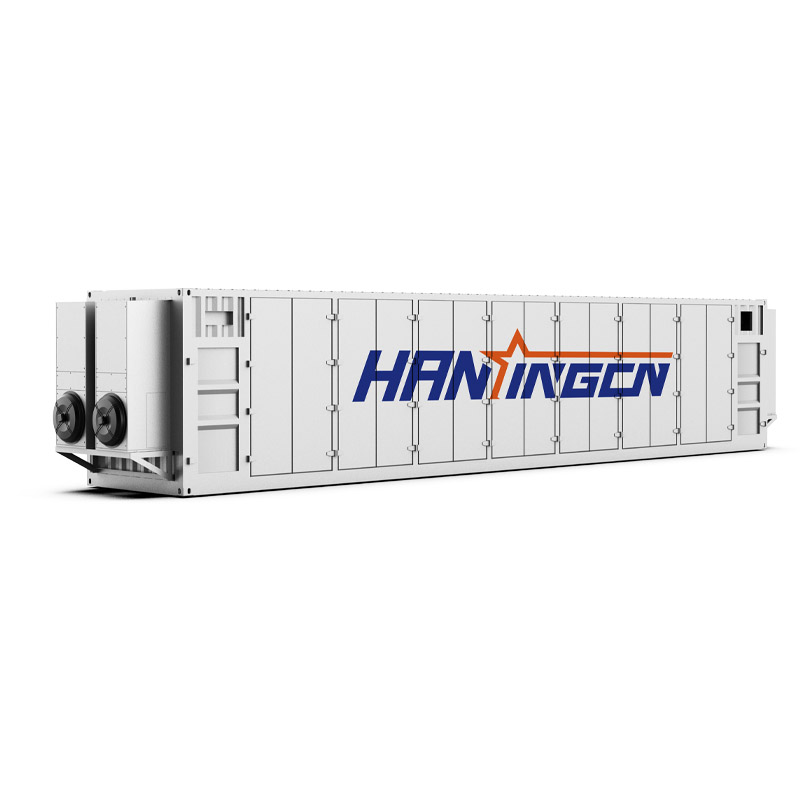

Hanxingcn 45ft 5MWh Containerized Battery Energy Storage System

CES

Hanxingcn 45ft 5MWh Containerized Battery Energy Storage System

One of the main advantages of a 45ft BESS container is its ability to provide large-scale energy storage.
  • Brand:

    HANXINGCN
  • Model:

    XINGXI-5000-(1080-1460)
  • Battery Type:

    LFP
  • Usable Capacity:

    5017.6 kWh
  • Nominal Voltage:

    1280 V
  • Cooling Method:

    Air cooling

45ft 5MWh Containerized Battery Energy Storage System



Hanxingcn 45ft Containerized Battery Energy Storage System (BESS) is a cost-effective and modular solution for storing and managing energy generated from renewable sources. With their ability to provide energy storage at a large scale, flexibility, and built-in safety features, containerized BESS is an ideal solution for organizations looking to implement renewable energy projects and reduce their reliance on fossil fuels.



Hanxingcn 45ft containerized BESS has approximately 5MWh of usable energy. Here are some ways can unlock the potential of 5MWh BESS containers:



  • Supports 1500V DC voltage, with a comprehensive efficiency of over 93%. High density, large capacity energy storage system
  • Custom-built container for simple plug-and-play modular expansion
  • The modular design is convenient for installation, debugging and transportation, and has strong application flexibility
  • High safety LFP energy storage cell with up to 8000 cycles and a lifespan of over 15 years
  • Reliable battery management system (BMS), patented software algorithm to ensure reliable operation of equipment
  • Modular design, convenient installation and maintenance. Intelligent human-machine interface, real-time monitoring, easy to operate
  • Intelligent temperature control system, which is not affected by external environment
  • Automatic security system, perfluorohexanone gas fire extinguishing, fully submerged, safe and reliable, quick response
  • Superior fire and safety system





Technical Parameter



Model XINGXI-5000-(1080-1460)
Rack Configuration 2 groups, 7 racks per group
Cell Max. Continuous Charge & Discharge 0.5C
Cell Configuration 400S7P*2
Nominal Energy 5017.6 kWh
Nominal Voltage 1280 V
Voltage Range 1080 V ~ 1460 V
Operating Temperature Range -30℃ ~ 50℃
Storage temperature range -30℃ ~ 55℃
Max. Working Altitude ≤ 4000 m
Battery Temperature Control Method Industrial grade air conditioning
Fire Fighting System FM-200 Fire Fighting System
Communication Interface Ethernet
Communication Protocol Modbus-RTU/Modbus-TCP/IEC104
IP Level IP55
Dimensions (W × D × H) 13716×2438×2896 mm
Weight ≈55 Ton
Compliance IEC62619, UN38.3, UL1973, GB/T36276-2018







Send A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
You may be interested in the following products...

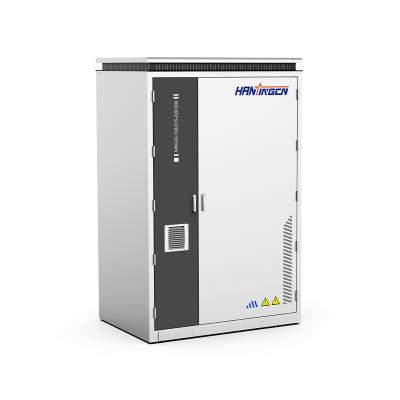

Outdoor ESS

XINGXI all in one energy storage system aims to provide solutions for industrial and commercial application scenarios to ensure grid security, enhance renewable energy generation, and provide UPS backup to maintain normal power supply.

Learn More

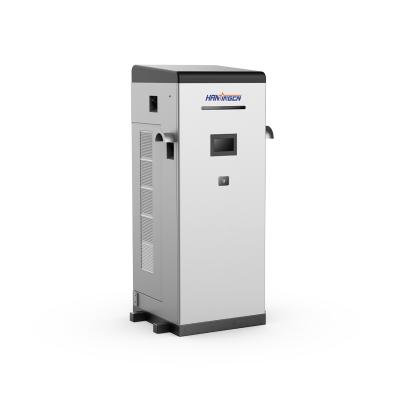

liquid cooling C&I ESS

XINGHUI Liquid Cooling Commercial & Industrial Energy Storage System aims to provide solutions for industrial and commercial application scenarios to ensure grid security, enhance renewable energy generation, and provide UPS backup to maintain normal power supply.

Learn More

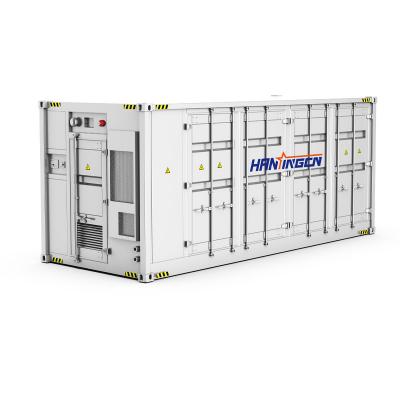

Liquid cooling battery container

Hanxingcn 20ft battery container is a battery energy storage system (BESS) solution integrated with liquid cooling system technology.

Learn More

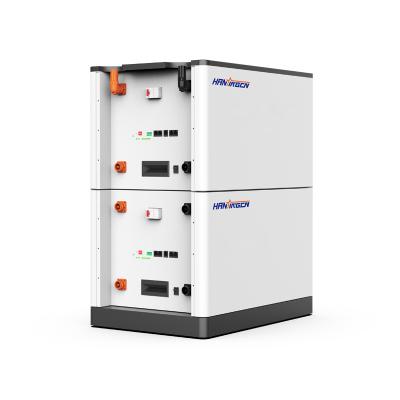

Hanxingcn XINGXI-L Series 15 kWh Low Voltage LFP Battery

Utilizing a modular stacking battery system can help reduce your power bills and protect your household from power outages by providing a continuous and reliable power supply.

Learn More
Hanxingcn XINGXI-L Series 5~30 kWh Low Voltage LFP Battery

Hanxingcn XINGXI-L Series Low Voltage Battery Systems are great for off-grid systems, and users looking for large capacity potential with a medium to low energy demand.

Learn More
Liquid cooling battery container

Hanxingcn 20ft battery container is a battery energy storage system (BESS) solution integrated with liquid cooling system technology.

Learn More
Outdoor ESS

XINGXI all in one energy storage system aims to provide solutions for industrial and commercial application scenarios to ensure grid security, enhance renewable energy generation, and provide UPS backup to maintain normal power supply.

Learn More

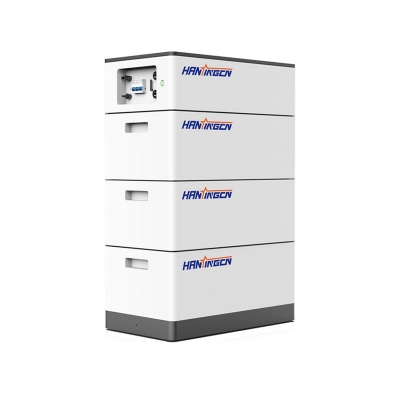

10 kWh high voltage LFP battery
