Brand:
HANXINGCNOrder(MOQ):
1Payment:
T/T, L/C, Western UnionLeadTime：
30 daysBattery Type:
LiFePO4Nominal Capacity:
26.5 kWhNominal Voltage:

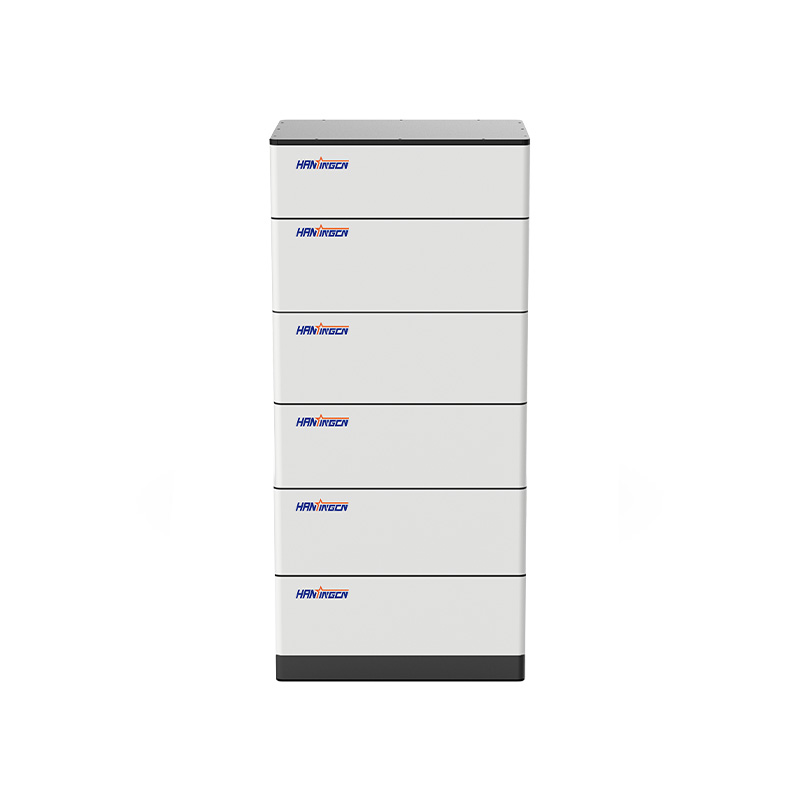

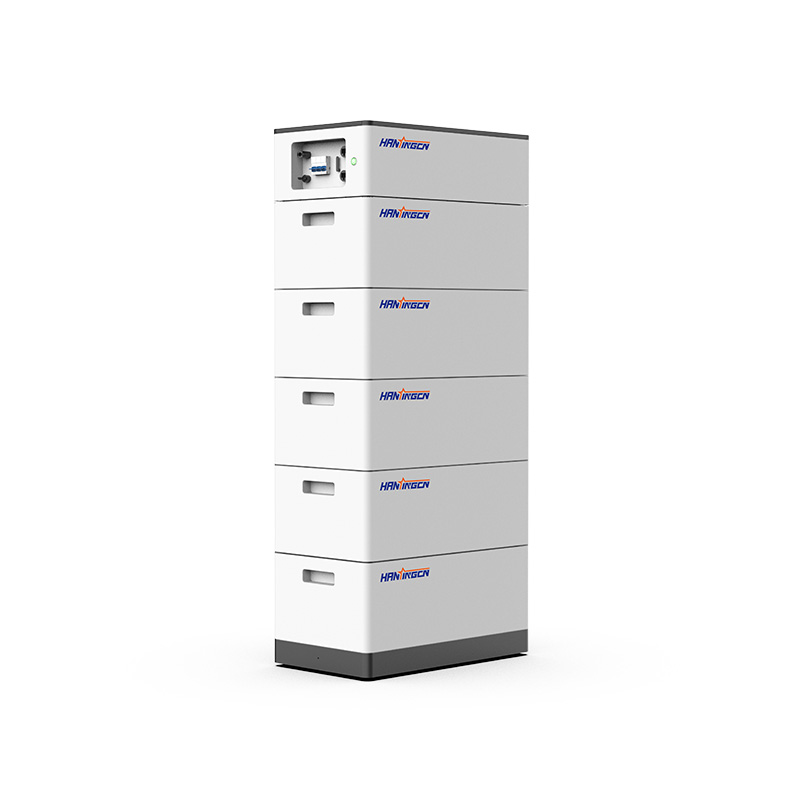

512 VXINGXI-H Series 26 kWh High Voltage LFP Battery
Product Description
Hanxingcn brand XINGXI-H series high-voltage LFP battery is a cutting-edge product designed to fulfill the energy demands of modern technology. It has been designed with high-precision technology to offer exceptionally long-lasting power with dependable performance. It is perfect for power-hungry tech devices that require a reliable and seamless power source to function at their best.
Technical Parameter
| XINGXI-10-H | XINGXI-15-H | XINGXI-21-H | XINGXI-26-H | |
| System Data | ||||
| Battery Type | LFP | |||
| Battery Module | XINGXI-5000H: 102.4V 5.3 kWh | |||
| Number of Modules | 2 | 3 | 4 | 5 |
| Nominal Capacity | 10.6 kWh | 15.9 kWh | 21.2 kWh | 26.5 kWh |
| Usable Capacity | 9.54 kWh | 14.31 kWh | 19.08 kWh | 23.85 kWh |
| Nominal Voltage | 204.8 V | 307.2 V | 409.6 V | 512 V |
| Operating Voltage | 182.4~230.4 V | 273.6~345.6 V | 364.8~460.8 V | 456~576 V |
| Continuous Discharge Current | 26 A | |||
| Communication | CAN | |||
| General Data | ||||
| Weight | 120 kg | 172 kg | 224 kg | 276 kg |
| Dimensions (W×D×H) | 666×354×796 mm | 666×354×1078 mm | 666×354×1360 mm | 666×354×1641 mm |
| Operating Temperature | Charge: 0℃ to 50℃ / Discharge: -20℃ to 50℃ | |||
| Humidity | ≦ 95% | |||
| Altitude | ≦ 2000 m | |||
| Degree of Protection | IP54 (outdoor / indoor) | |||
| Mounting Method | Floor stand | |||
| Certificates | TÜV SÜD / CE / UN38.3 / MSDS | |||
Hanxingcn XINGXI-H Series High Voltage Stacked LFP Battery starts at 10.6kWh, with additional 5.3kWh modules for expansion.
