Brand:
HANXINGCNOrder(MOQ):
1Payment:
T/T, L/C, Western UnionLeadTime：
30 daysBattery Type:
LiFePO4Nominal Capacity:
10.6~26.5 kWhNominal Voltage:

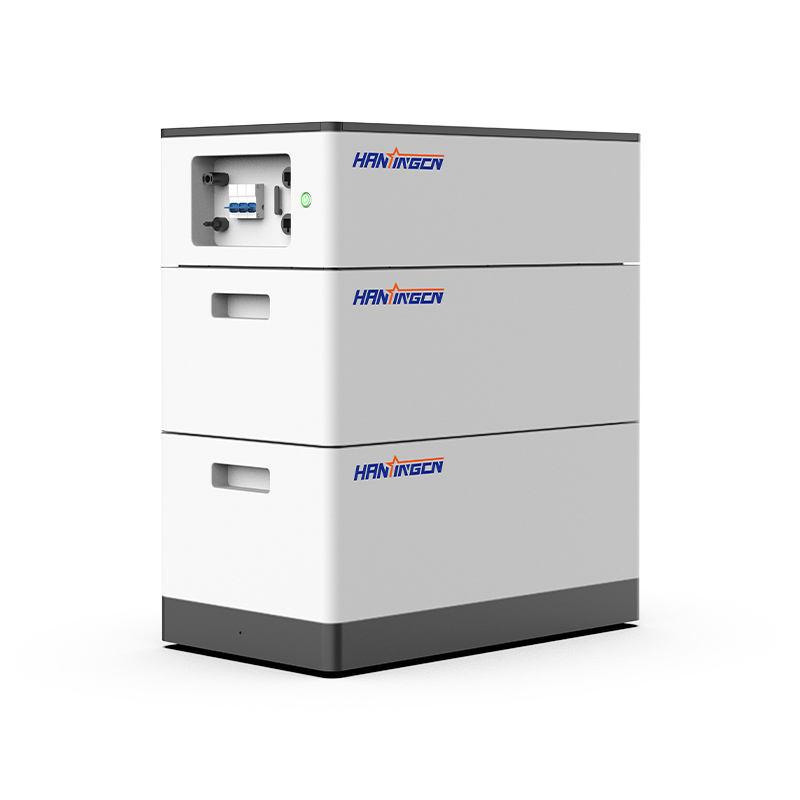

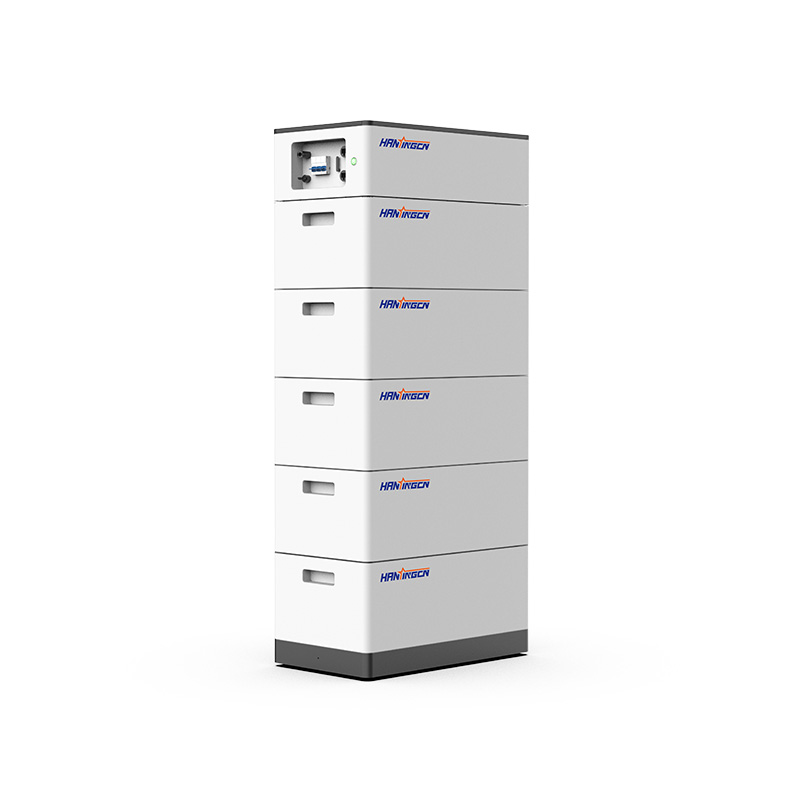

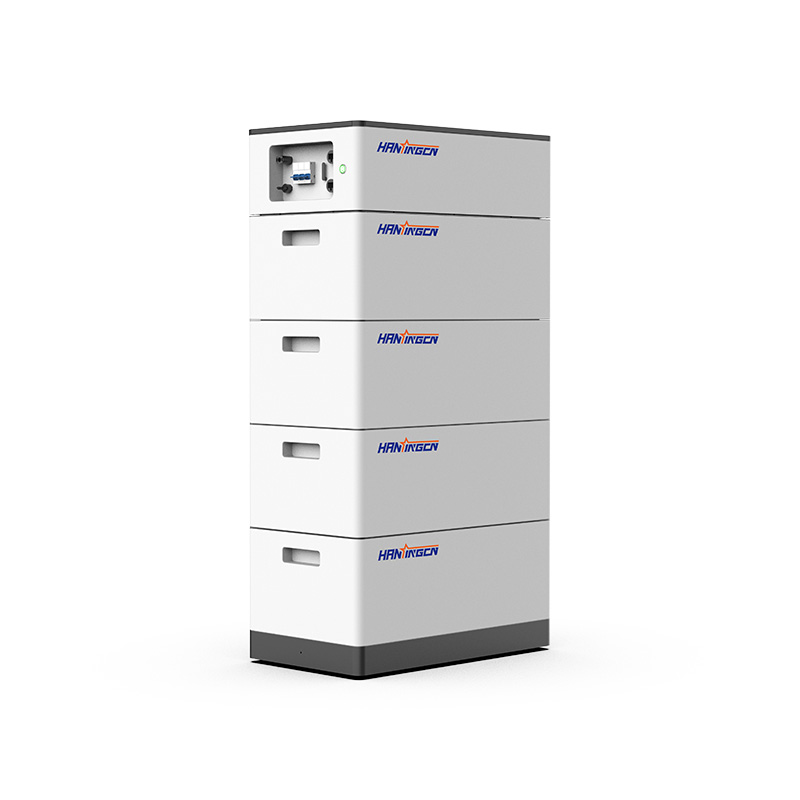

204.8~512 VXINGXI-H Series 10-26 kWh High Voltage LFP Battery
Product Description
Hanxingcn brand XINGXI-H series high voltage LFP battery is a cutting-edge energy storage product designed by Aulanbel to meet modern residential energy demands. It adopts long-life LiFePO4 batteries, intelligent BMS, advanced high-voltage box, and easy-to-install floor-standing design, which can provide exceptionally long-lasting power and stable performance according to the requirements of the inverter. It is perfect for power-hungry tech devices and power supply difficult places that require reliable and seamless power source to function at their best. Mainly used in residential energy storage systems, but also in small commercial places.
Hanxingcn high voltage batteries start at 10.6kWh, with an additional 5.3kWh module for expansion, up to 26.5kWh per tower. Compatible with most three-phase inverter brands on the market.
Technical Parameter
| XINGXI-10-H | XINGXI-15-H | XINGXI-21-H | XINGXI-26-H | |
| System Data | ||||
| Battery Type | LFP | |||
| Battery Module | XINGXI-5000H: 102.4V 5.3 kWh | |||
| Number of Modules | 2 | 3 | 4 | 5 |
| Nominal Capacity | 10.6 kWh | 15.9 kWh | 21.2 kWh | 26.5 kWh |
| Usable Capacity | 9.54 kWh | 14.31 kWh | 19.08 kWh | 23.85 kWh |
| Nominal Voltage | 204.8 V | 307.2 V | 409.6 V | 512 V |
| Operating Voltage | 182.4~230.4 V | 273.6~345.6 V | 364.8~460.8 V | 456~576 V |
| Continuous Discharge Current | 26 A | |||
| Communication | CAN | |||
| General Data | ||||
| Weight | 120 kg | 172 kg | 224 kg | 276 kg |
| Dimensions (W×D×H) | 666×354×796 mm | 666×354×1078 mm | 666×354×1360 mm | 666×354×1641 mm |
| Operating Temperature | Charge: 0℃ to 50℃ / Discharge: -20℃ to 50℃ | |||
| Humidity | ≦ 95% | |||
| Altitude | ≦ 2000 m | |||
| Degree of Protection | IP54 (outdoor / indoor) | |||
| Mounting Method | Floor stand | |||
| Certificates | TÜV SÜD / CE / UN38.3 / MSDS | |||
